ALLPLAN Plug-in

ALLPLAN Streaming:

Please note that with these plugins you can distribute any project on the platform. You need to open the project first, then open the export menu and select streaming.

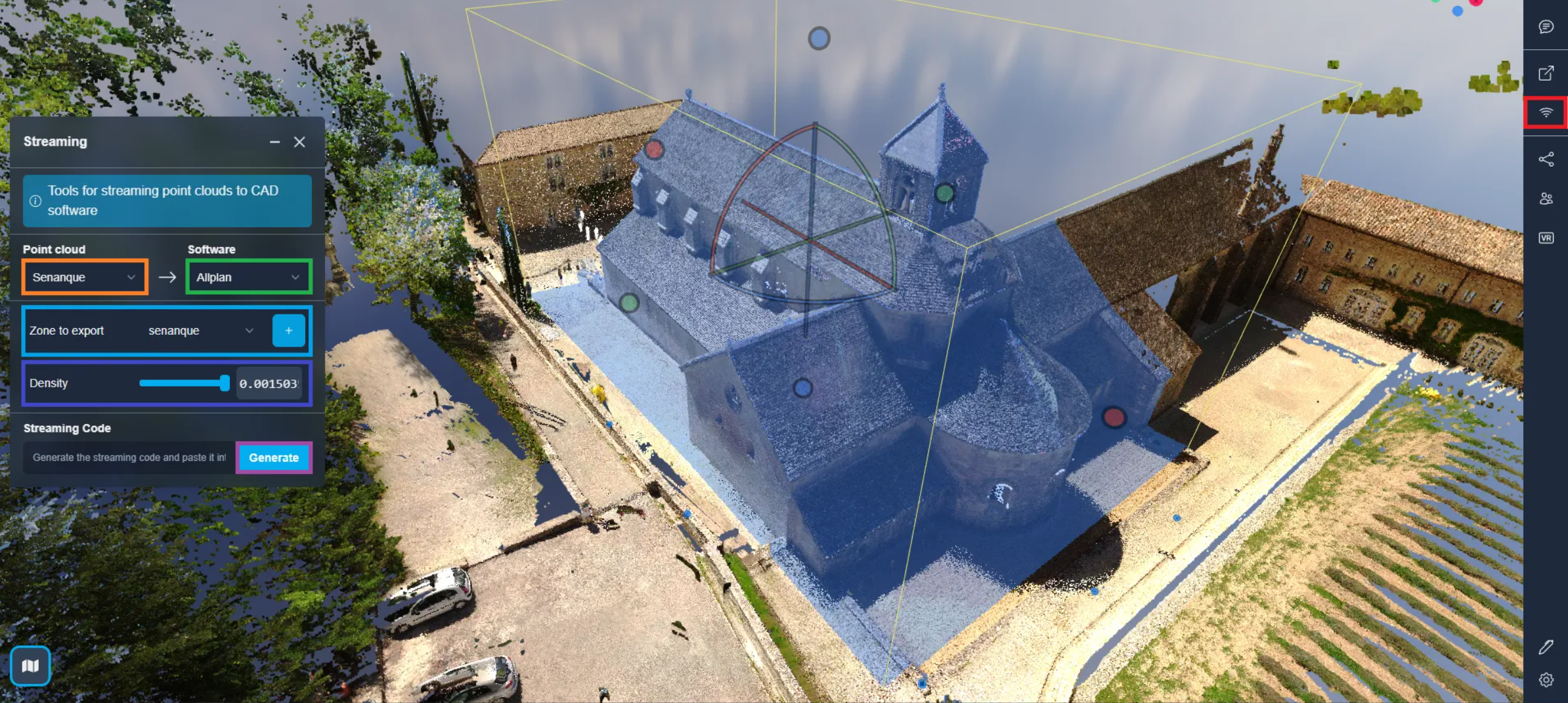

We now have access to the broadcast window, select the point cloud you want to broadcast and the CAD software you will broadcast to.

When streaming to ALLPLAN, you must use a trim box to only stream what is in that box. Select a clipping box already placed on your viewer or add a new one.

Then select the density of the point cloud you want to use, keep in mind that the higher the density, the longer it will take you to load the points on the other side depending on your internet connection and performance of your PC.

Once all this is done, you can click on “ generate ” and copy the link.

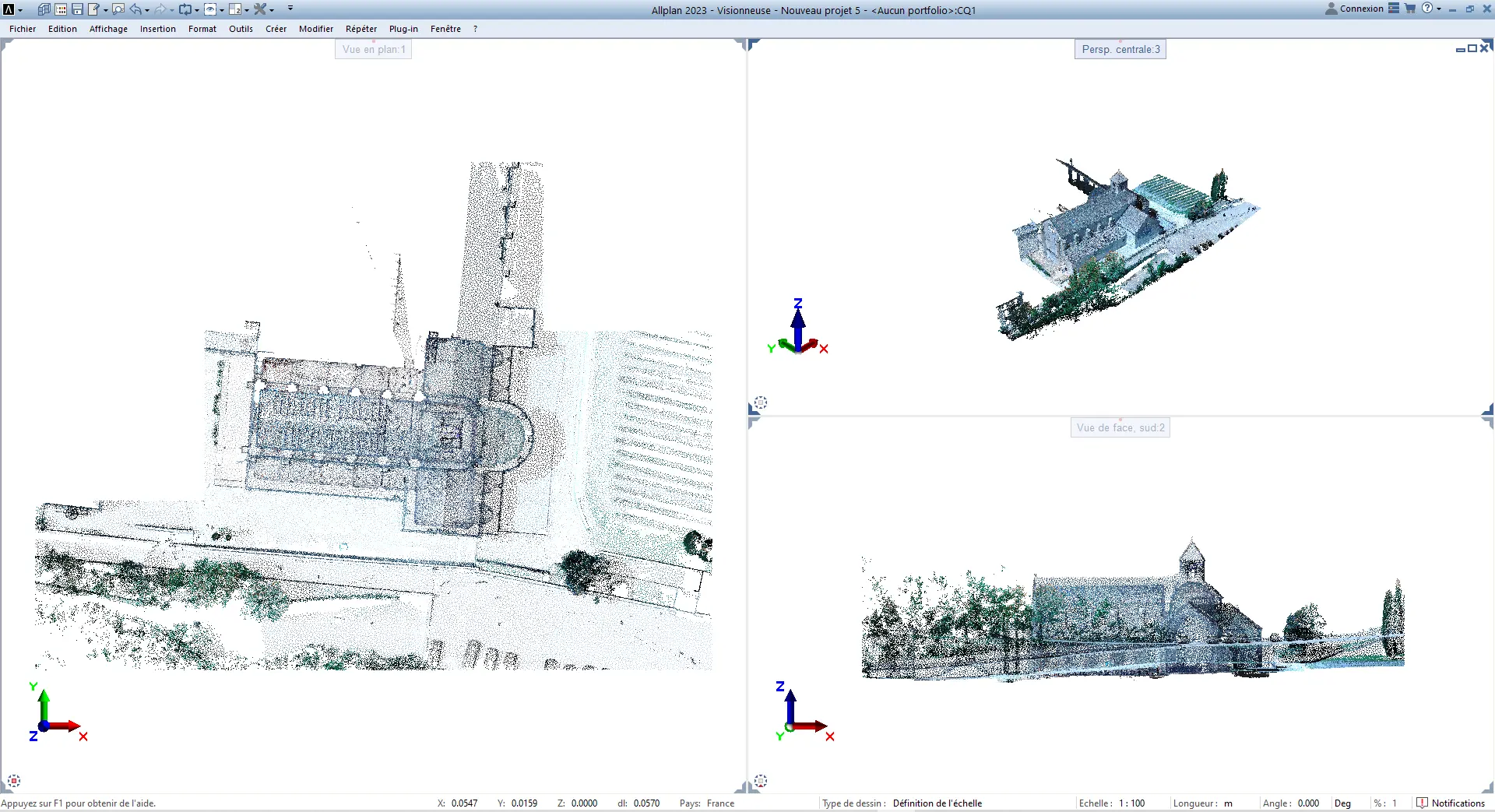

Open ALLPLAN and paste the code into the plugin, then select the dimension and click "load".



Remember that project loading speed on Autodesk Revit and ALLPLAN depends on your Internet connection and PC performance.



If you run into any issues, our support team is here to help. Happy exploring!
