Autodesk Revit Plug-in - Installation

Plugin requirements


Minimum Configuration:

Processor: Dual-core 2 GHz or higher
RAM: Minimum 8 GB or more
Graphics Card: Nvidia Quadro or GeForce 1 GB + OpenGL 4.5 or higher versions (latest drivers must be installed)
Hard Drive: 1 GB or more of free storage space

Recommended Configuration:

Processor: Intel® i-Series, Xeon®, AMD® Ryzen, Ryzen Threadripper PRO. 2.5 GHz or higher
RAM: Minimum 16 GB or more
Graphics Card: Nvidia Quadro or GeForce 1 GB + OpenGL 4.5 or higher versions (latest drivers must be installed)
Hard Drive: 5 GB or more of free storage space

Install the Autodesk Revit plugin


Once you receive the installer, open it (double-click the file) to display the following interface:

In this window, select the version of Autodesk Revit on which you want to install the plugin (2022 or 2023). Click on the desired version in the selection rectangle (red rectangle), of the photo below:

After choosing the version, click "Next" located at the bottom right of the interface. The interface will then change to display the following photo:

At any time, you can return to your previous selection by clicking on "Previous", or cancel the current download by clicking on "Cancel", to continue the installation, click on "Install".

For more information on canceling the download, see the "Cancel the download in progress" section. If a conflict occurs during installation, see "Running Autodesk Revit Conflict".

The download will start automatically and you will arrive on this interface:

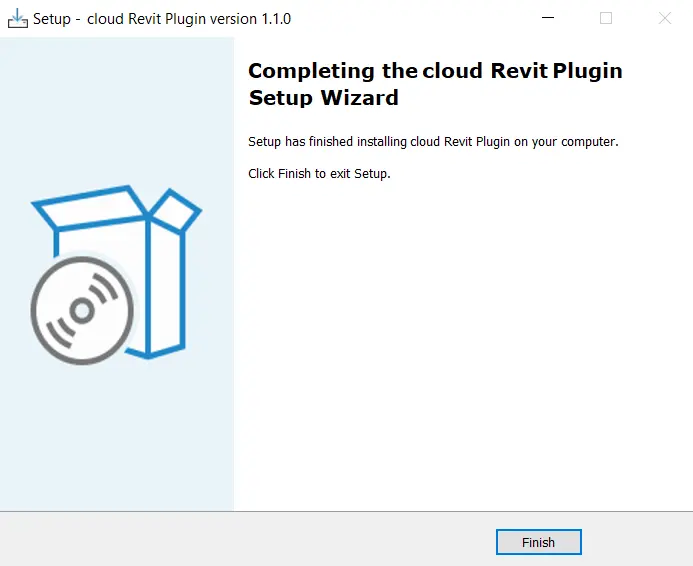

Congratulations ! You have finished installing the Autodesk Revit plug-in. Click the "Finish" button (blue frame) at the bottom right of the interface to finalize the process.

Cancel the current download

If you clicked on the “Cancel” button located at the bottom right of each installer interface, you will see the following interface:

You have two options: click "Yes" to cancel the installation of the Autodesk Revit plugin, or click "No" to return to the previous interface.

Conflict, Autodesk Revit is running

If a conflict occurs during installation, you will see the following interface:

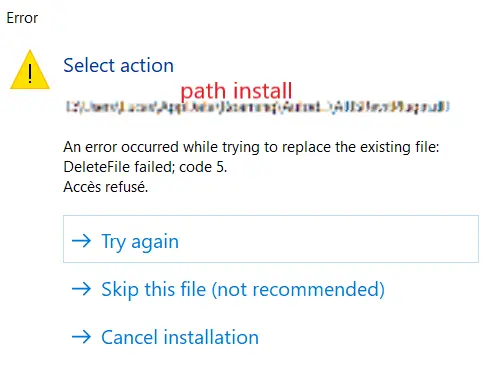

In this case, you can choose to continue the download by automatically closing the Autodesk Revit application. Please note that any projects currently open in Autodesk Revit will not be saved and will be lost. Make sure you have saved your work before continuing. You can also choose to continue the installation without closing the conflicting applications. However, this will cause the installation to fail with the following message:

Finally, you can click "Cancel" to cancel the installation. For more information on canceling, see the "Cancel the current download" section. You can also click "Next", which will by default perform the same action as continuing the installation by closing the Autodesk Revit application.



If you run into any issues, our support team is here to help. Happy exploring!
